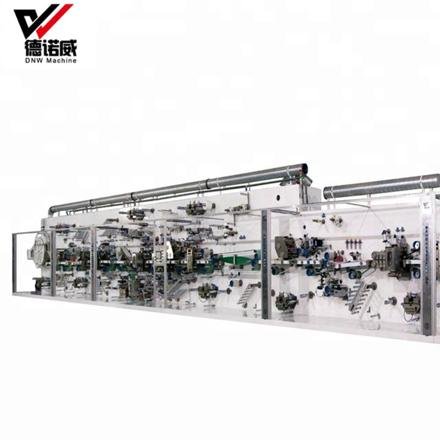

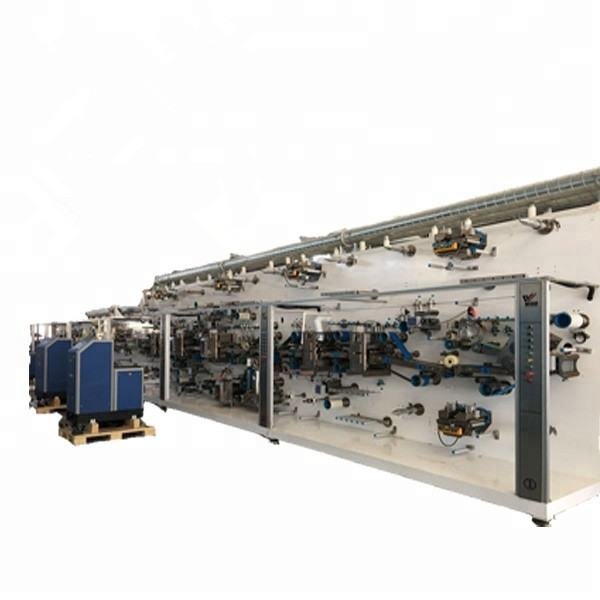

Full-servo Control Full automatic Sanitary Napkin Machine
Product structure:
Tissue paper, sap paper, topsheet nonwoven, double wing nonwoven(3pcs),ADL, backsheet, back&wings, release paper, packing film.
Tension system:
Tension unwinding equipped, constant tension control with buffer system, automatic web guide system. The unwinding system ensure materials stable working at full speed splice, minimize the impact on materials tension force, to reduce the time of stop machine.
Drive system:
Full servo driven, imported timing blet, key position adopt with the imported bearing.
Safety system:
It has safety device on the operating side, matched with urgent stop switch, high audio fan uses sound insulation or silencer.
Materials corrective system:
Germany BST automatic web guide system(optional)
| Item No. | Full-servo Sanitary |
|---|---|
| Payment | 30% T/T deposit,70% Balance before shipping |
| Product origin | China |
| Color | Customized |
| Shipping port | Xiamen |
| Lead Time | About 180days |
Sourcing tip: when you request a quotation for the Full-servo Control Full automatic Sanitary Napkin Machine, share your target product size, daily output and the raw materials you plan to use. The DNW sales team will confirm the right configuration and send a factory price with delivery schedule.
Full-servo Control Full automatic Sanitary Napkin Machine
Subject
Parameter
Stable Working Speed
300-700pcs/min (By order)
Pass Percentage
≥98%
Operating Rate
≥85%
Power Supply
380V 50Hz
Electrical Supply
380V ±5%, 50Hz Three-phase four-wire + ground wire
Power Installed
About 180KW (Not included hot melt glue machine)
Supply Pressure
0.6-0.8Mpa
Machine Sizes (L× W× H )
22.0m× 5.5m× 3.5m(L× W× H )(Only for reference)
Main Engine Sizes (L× W× H )
32m× 9.0 5.0m (L× W× H ) ( Only for reference)
Machine Color
Customerized
Configuration:
Configuration
Product Structure
Carrier Tissue, Fluff Core (Mix with SAP), Topsheet(3-PCS structure), ADL, Backsheet, Back Release Paper, Wings Release Paper, Pouch Film
Product Size
Daytime use: 240mm
Night use: 285mm (Customized Design)
Control System
PLC Programming control, HMI operation
Tension System
Carrier tissue, absorbent paper, topsheet N.W., leg cuffs N.W., ADL, PE film, Back release paper, Wings Release Paper, pouch film
A&B shaft active unwinding by inverter motor
Drive System
Full servo drive. Using import conveyor and timing belt. Important Part using import bearing.
Safety System
Safety guard installed at the operating side, equipped with emergance stop switch, security identifier. Driven side is equipped with safety pull wire
Materials corrective system
Germany BST automatic web guide system (optional)
Our main Products:
1. Baby diaper Production Line( Include:I & T shape diaper,Baby pants,Full Elastic waistband diaper)
2. Adult diaper Production Line(Include:Adult diaper,Adult pants)
3. Sanitary Napkin & Panty Liner Production Line
4. Menstruation Panty Production Line
5. Under Pad Production Line
6. Disposable Breast Pad Production Line
Company Information:
DNW Machine is a professional in the research, development, production, sales and service of disposable hygiene product manufacture equipment.
Our company has consistently adhered to "quality as a fundamental, development by innovation" as business culture. DNW have strong design and technology team and equipped with advanced CNC gantry machining center, CNC high-precision CNC lathe, large-scale radial drilling machine, precision saddle lathes, milling machines and other processing equipment.
Our service:
Professional
DNW have strong design and technology team and equipped with advanced CNC gantry machining center, CNC high-precision CNC lathe, large-scale radial drilling machine, precision saddle lathes, milling machines and other processing equipment.
Service
"Quality as Fundamental, Development by Innovation" is our company culture.We are one of leading manufacturer in China and focus on supplying A-Z and 7X24H Service for the customer in the disposable hygiene product filed
Innovate
DNW adopt scientific management strict monitoring, research and development of new products constantly for different customers. Depend on our good engineer from design and technology team.
Efficient
Efficiency is the life of the company. DNW attaches great importance to enterprise efficiency. Introduces advanced company management system for all of our team. According to production schedule to ensure timely finish of machine of customers.
FAQ:
1. What is your manufacture date ?
A: The manufacture date is 120 days after deposit receipt.
2. What is your order payment terms ?
A: 30% deposit in advance and 70% balance before shipment.
3. Can you send us samples of the finally priduct ?
A: Yes, free samples can be sent out, the freight charge is paid by you.
(1). You can provide your a/c like DHL or FEDEX or TNT
(2). You can call your courier to pick up at our office.
(3). You can pay us the express charge by western union or T/T.
4. Where is your factory located? How can I visit it.
A:Our factory is based in Quanzhou city,Fujian province,China
You can fly to Jinjiang air port, we will pick you up.
Contact:
